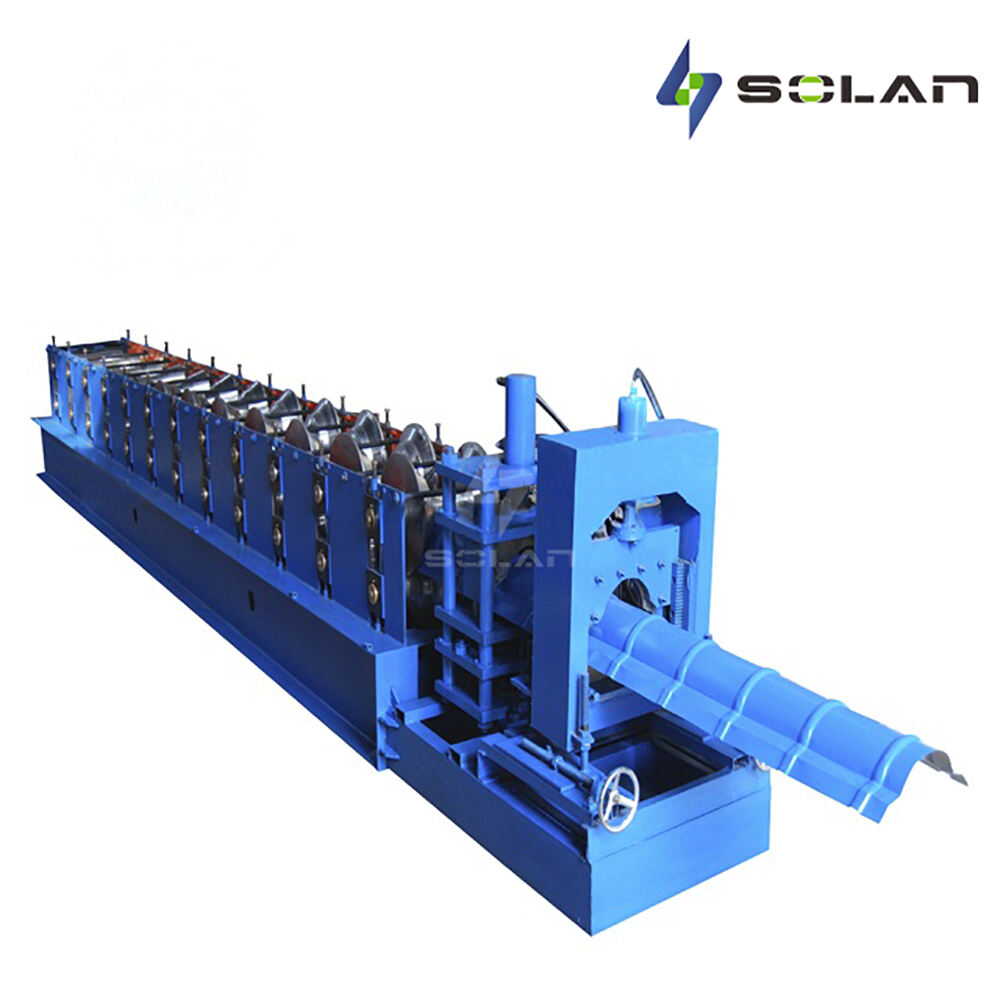

Electric Hydraulic Automatic Metal Roof Panel Round Ridge Cap Roll Forming Machine

Description

Custom Arc Tile Machine, Quick Mold Change High-Speed Tile Machine, Automated Production Easy to operate, durable roof ridge tile machine

Introduction

Electric hydraulic drive: The machine adopts electric and hydraulic dual drive systems to ensure stability and efficiency during processing. The electric system provides power, while the hydraulic system is responsible for precise control and adjustment to achieve efficient processing results.

High degree of automation: Through advanced control systems, the machine is able to achieve automated operation, reduce manual intervention, and improve production efficiency and product quality.

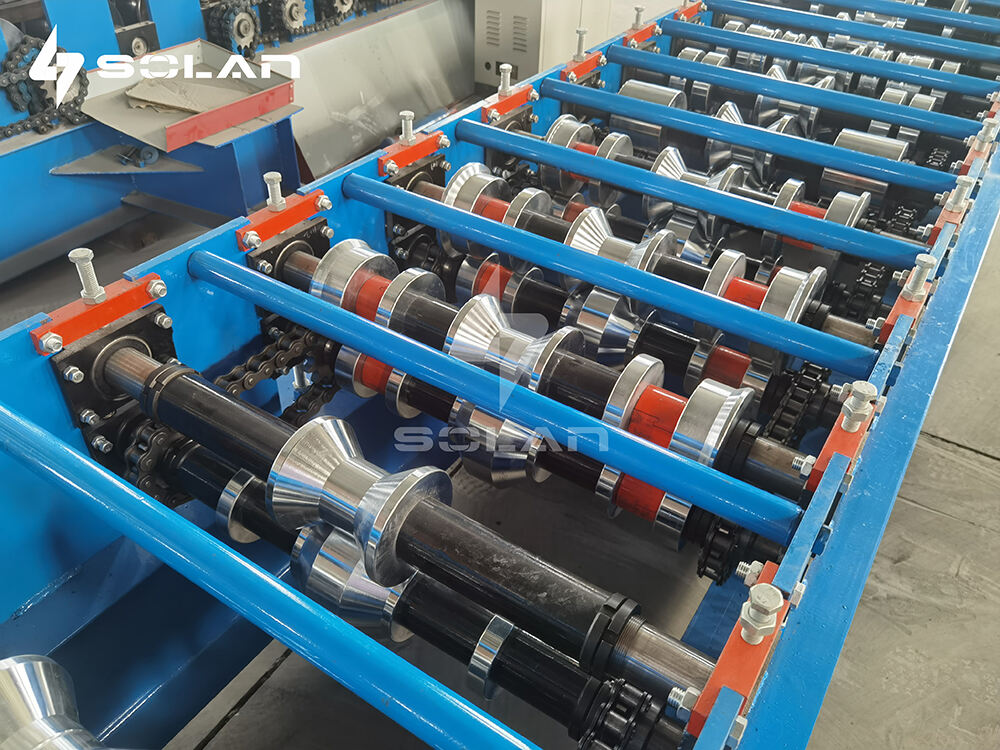

High molding accuracy: The use of precise molds and molding processes ensures that the round ridge cover part of the metal roof panel has a high degree of shape regularity and dimensional accuracy.

Easy to operate and maintain: The operating interface of the machine is simple and easy to understand, which is convenient for operators to quickly get started. At the same time, its compact structure and easy maintenance reduce the cost of later maintenance.

Electric-Hydraulic-Automatic-Metal-Roof-Panel-Round-Ridge-Cap-Roll-Forming-Machine.png

Specification

No	Item
1	Processing Material	PPGI,GI
2	Material Width(mm)	As customer need
3	Processing Thickness(mm)	0.3-0.5mm
4	Material of Rollers	45# steel,with hard chrome coated
5	Diameter of Shaft	Ф70mm
6	Production Speed	8---12m/min
7	Cutting Model	Hydraulic Profile Cutting
8	Length Measurement	Encoder
9	Control Style	PLC
10	Operation Model	Button+ screen
11	Total Power	6kw
12	Voltage	380V 50HZ or as buyer's request
